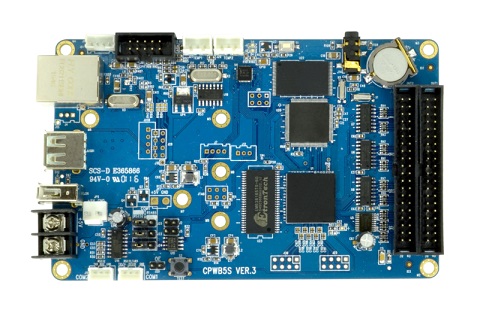

【Product Introduction】 C-Power 5series card is the newly released newest full color grey-scale controller of Shenzhen Lumen Electronics Co.,ltd. C-Power 5series card is more powerful with lower price, which make them much higher cost-performance and more competitive in the market. C-Power 5series card is with 4096-grade grey-scale, support smart setting, easily to set all kinds of LED display. C-Power 5series card and C-Power full series products the same, with the same external protocol and secondary development interface. C-Power 5series card different versions: C-Power50A(TCP/IP and USB version) ; C-Power51A(WIFI version);C-Power51A-U(WIFI and USB version); C-Power51A-RN(WIFI and TCP/IP version); C-Power52A（GPRS version）; C-Power53A（3G version）;C-Power54A（4G version）
【Feature and Specification】 Control size (full , mono/RG color) | 512*256pixels, 4096-grade gray scales | Memory | Total size: 256MByte（2Gbit)
Program size: 128MByte
Font library space: 128MByte | Program | All programs are transmitted by compression package, and then decompressed on control card.
Supports video program
Supports animation(swf,gif) , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust
Transparent text and clock program can be edit to cover photo or video
More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
With multi-program mode. Stores up to 512 programs to the Led screen.
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
Supports programs played at the appointed period (for example: week, hour, minute ) | Separate window mode | Supports the segmentation of up to ten playing windows for each program.
Supports playing the content in different formats for each playing window. | Affiliated features | With real-time clock (RTC) management and setting, support digital and analogue clock.
Supports environmental data programs like temperature, etc.
Supports sensors installed externally (32-grade brightness) | Font library | 128MB font library space
The card can be stored different font library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc., Up to 8 different font libraries can be stored and displayed at the same time
We supply font library edit tools and update tools
Support Hong Kong supplementary character fonts, Hindi | Standard software | LedCenter V5.3.3 or above | Standard communication mode | TCP/IP and USB version：TCP/IP network interface、U disk interface WIFI version：integrate WIFI module
GPRS version：integrate GPRS module(Dual-band or Quad-band) All version of the standard RS232/RS485 : maximum baud rate: 115200 | InDa remote & keyboard | Program list edit and display control by infrared controller or keyboard | External communication components | Supports various wireless communication modes: ZigBee, RF... | Others | Provides customized development interface andits manual.
Provides demonstration program and source codeforcustomized development
Besides, provides “Wireless information issue”version. |
【Relevant Download】 Software | | LedCenter is a professional LED control system supporting software and can support Lumen LED control system To support AVI video, the decoder should be installed on the computer first. | Operation manual | | 1.Software operation manual
2. IrDa remoter control manual | Tools and handbook | 1. Installation handbook 2. Schematic diagram for installation of the card: click to download | 1. Hardware installation and debugging handbook for engineers. 2. Schematic diagram for layout, size and installation position of the CPWB5S card. | Interface handbook for customized development | API and manuals click to download | DLL and interface handbook for customized development
| Demo program and source code for customized development | DLL development package click to download | It includes demo program and source codes for customized development. | External protocol | External communication protocol click to download | External calls communication protocol | Plug board and gusset plate(for the red one, we provide the gusset plate.) | | KB02（HUB40） interface： 2 R1 B1 R2 B2 N N N N16
1 R1 G1 R2 G2 CK LD OE N15 |
KB04（HUB12） interface： 2 A B C CK LD R G D 16
1 OE N N N N N N N 15 |
KB20（HUB08） interface：(full collor or RG, the "B2" should change to "D" , when 1/16 scan mode) 2 A B C B2 G1 G2 LD CK 16
1 N N B1 OE R1 R2 N N 15 |
KB20S interface：（HUB08 full color single signal） 2 A B C D G N LD CK 16
1 N N N OE R B N N 15 |
KB21（HUB75） interface： 2 G1 N G2 N B N LD N 16
1 R1 B1 R2 B2 A C CK OE15 |
KB25（HUB97） interface： 2 G N N A B 10
1 R B CK LD OE 9 |
KB28（HUB90）interface： 2 G1 N G2 N N N N N16
1 R1 B1 R2 B2 CK LD OE N15 |
KB22 interface： 2 N N NC B1 N N N D 16
1 CK LD R1 G1 OE A B C15 |
KB23 interface： 2 G1 R2 B2 G3 R4 B4 A C LD N 20
1 R1 B1 G2 R3 B3 G4 N B CK OE19 |
|
|
